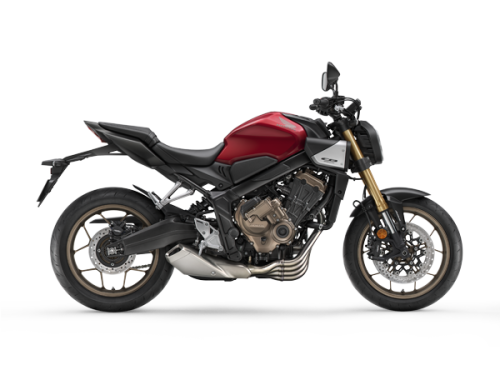

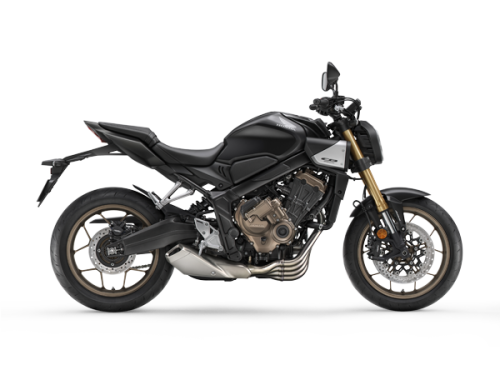

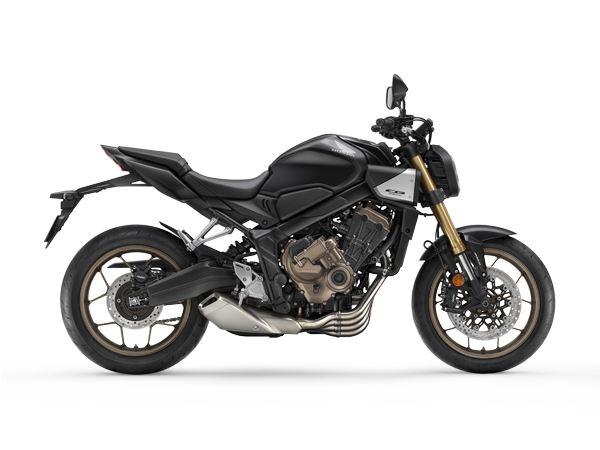

CB 650R
Spesifikasi
Dimension
| Lenght x Width x Height | 2.120 x 780 x 1.075 mm |
| Wheel Base | 1.450 mm |
| Ground Clearance | 150 mm |
| Seat Height | 810 mm |
| Curb Mass | 207 kg |
| Fuel Tank Capacity | 15,4 L |
Engine
| Engine Type |
4-stroke 16-valve DOHC inline-4 cylinder |
| Displacement |
648,72 cc |
| Cooling System |
Liquid-Cooled |
| Fuel Supply System |
PGM-FI (Programmed Fuel Injection System) |
| Bore × Stroke |
67 x 46 mm |
| Compression Ratio |
11,6 : 1 |
| Maximum Power (Crankshaft) |
66,5 kW/11.000 rpm |
| Maximum Torque (Crankshaft) |
60,7 Nm/8.000 rpm |
| Transmission |
Manual, 6 Speed |
| Gear Shift Pattern |
1-N-2-3-4-5-6 |
| Starting System |
Electric |
| Clutch System |
Wet multiple, E-Clutch |
| Lubrication Type |
– |
| Oil Capacity |
2,3 L (Periodic Exchange) |
Frame
| Frame Type |
Diamond, Steel |
| Tire Sizes Front |
120/70R17M/C (58W) |
| Tire Sizes Rear |
180/55ZR17M/C (73W) |
| Brake Type ABS System Type |
ABS 2 Channel |
| Brake Type Front |
Hydraulic, Double 310mm Disc with Four Piston Calipers |
| Brake Type Rear |
Hydraulic, Single 240mm Disc with Single Piston Calipers |
| Suspension Type Front |
41mm Showa SFF-BP Inverted Front Suspension |
| Suspension Type Rear |
Aluminum Swing Arm, Adjustable Monoshock |
Electrical
| Ignition Type |
Full Transisterized |
| Battery |
12V – 8,6 Ah (10h) |
| Spark Plug Type |
NGK IMR9E-9HES |
| Headlight |
LED |
| Security |
HISS (Honda Ignition Security System) |
