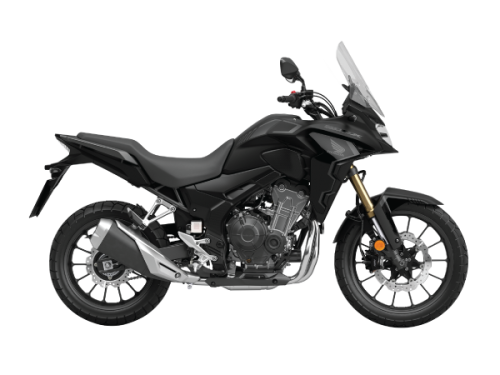

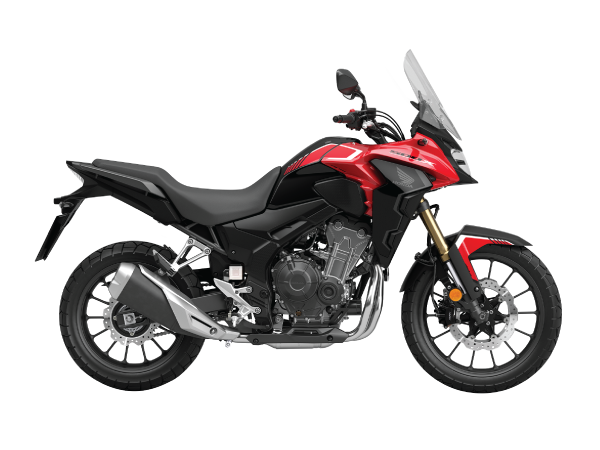

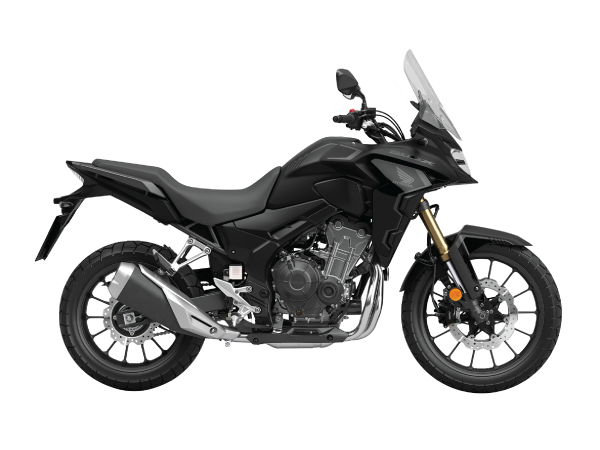

Honda CB500X
Spesifikasi
Dimension
| Length x Width x Height | 2.155 x 830 x 1.410 mm [Low Screen] ; 1.445 [High Screen] |
| Fuel Tank Capacity | 17,7 L |
| Ground Clearance | 181 mm |
| Curb Weight | 199 kg |
| Seat Height | 830 mm |
| Wheelbase | 1.445 mm |
Engine
| Engine Type | 4 Stroke, DOHC, Parallel Twin Cylinder |
| Displacement | 471 cc |
| Cooling System | Liquid Cooled |
| Fuel Supply System | PGM-FI (Programmed Fuel Injection System) |
| Bore x Stroke | 67 x 66,8 mm |
| Compression Ratio | 10,7 : 1 |
| Max. Power | 37 kW / 8.500 rpm |
| Max. Torque | 44,6 Nm / 6.500 rpm |
| Transmission | Constant Mesh, 6 speed |
| Starting System | Electric |
| Clutch System | Multiple Wet Clutch with Coil Spring |
| Oil Capacity | 2,4 L [Periodic Exchange] |
| Gear Shift Pattern | 1 – N – 2 – 3 – 4 – 5 – 6 |
| Lubricant Type | Wet, Pressing and Spray |
Frame
| Frame Type | Diamond, Steel |
| Front Tire Size | 110/80ZR 19 M/C [59H] |
| Rear Tire Size | 160/60ZR 17 M/C [69H] |
| Front Brake Type | Hydraulic, 296 mm double disc with dual piston calipers |
| Rear Brake Type | Hydraulic, 240 mm single disc with single piston calipers |
| Brake System | ABS 2 Channel |
| Front Suspension Type | Showa, 41 mm SFF-BP Inverted Telescopic Fork |
| Rear Suspension Type | Swing arm, adjustable Showa monoshock with Prolink |
Electrical
| Ignition Type | Full Transisterized |
| Battery | MF-Wet 12V – 7 Ah |
| Spark Plug Type | NGKCPR8EA-9 |
| Headlight | High 20W – Low 12W [LED] |
| Security | HISS [Honda Ignition Security System] |
